Description

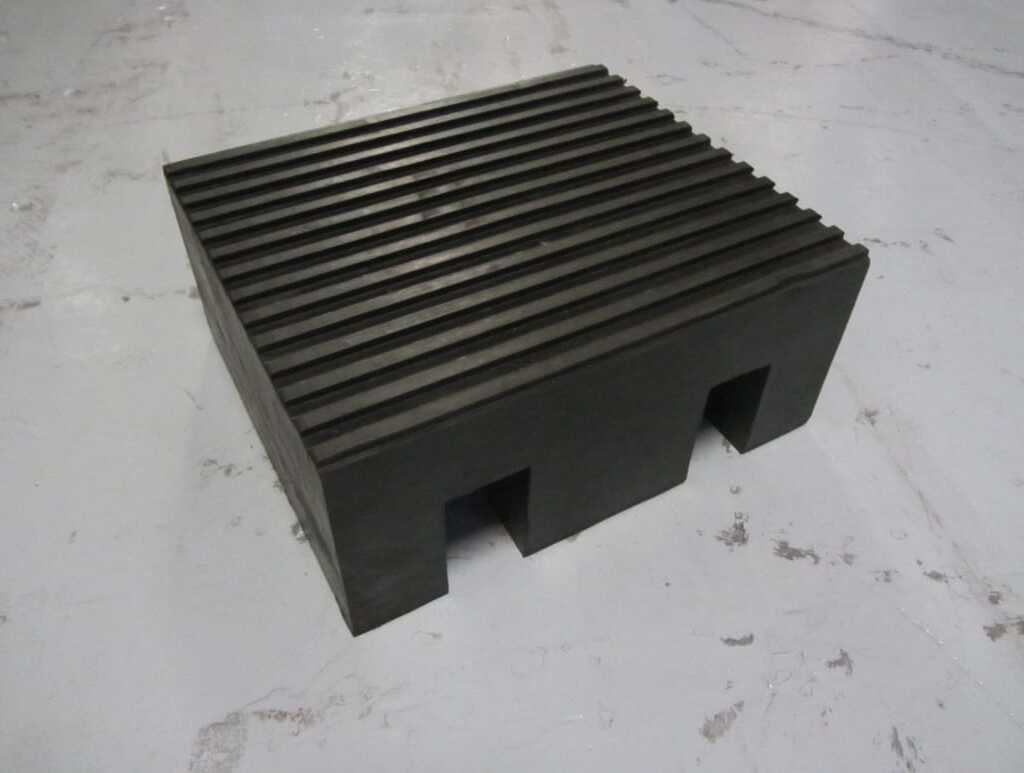

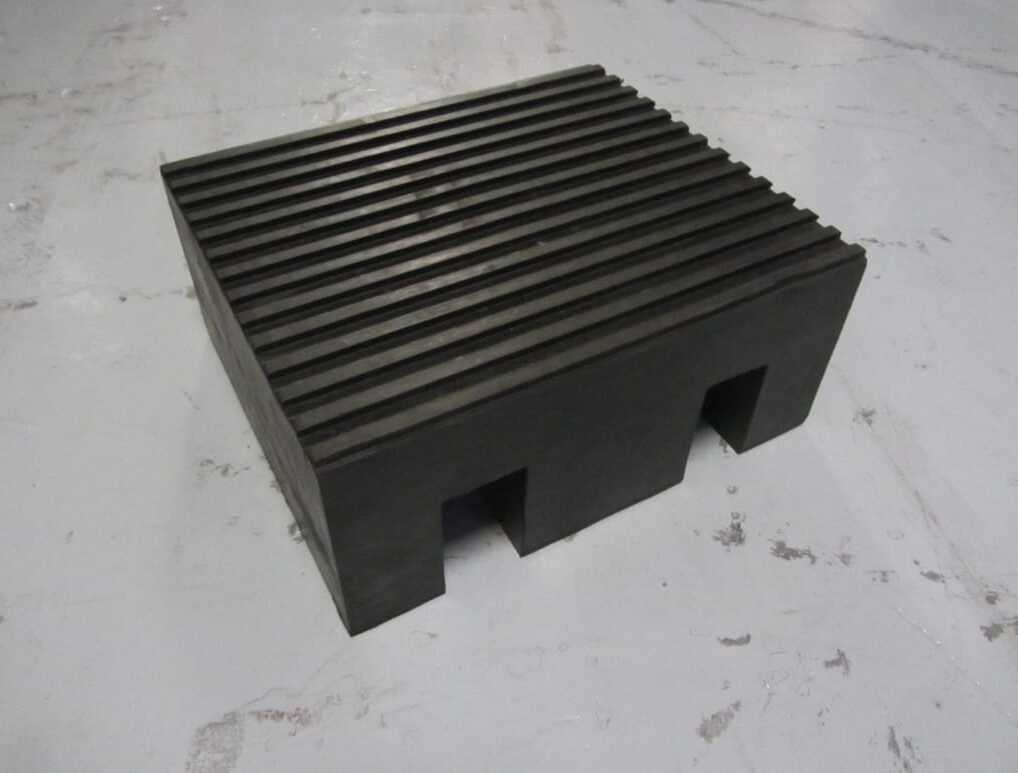

The MGF-0239 Hose and Cable Ramp is the rubber joining block section for the modular ramp system designed to join any of the steel bridge sections together so that multiple hose/cables can be covered. This part locks two steel bridge sections together by dropping over the two steel “pots” on each end of the steel bridge.
If required this part enables any number of steel bridges to be joined.
Specification
Material: Rubber/SBR
Dimensions: 350 x 400 x 180mm
Channels: n/a
Fixing: n/a
Usage: Vehicles
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060016
Compatible Products: MGF-0238, MGF-0392, MGF-0240, MGF-0241, MGF-0237
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
2 – How would I avoid cars grounding on the bridge? – Due to the height of modular system, we would recommend the following basic configuration, this gives an overall length that would ensure that most cars would have all wheels off the ground at the same time, and therefore avoid ‘beaching’
- Ramp – Spacer – Spacer – Bridge – Spacer – Spacer – Ramp
3 – I need to run more than 2 Hoses, is this possible? – Yes. This can be achieved by incorporating the ‘Joiner’ section (MGF-0239). This piece joins two or more bridges together, see the following examples.
- (4 Hoses/Cables) – Ramp – Spacer – Spacer – Bridge – Joiner – Bridge – Spacer – Spacer – Ramp
- (6 Hoses/Cables) – Ramp – Spacer – Spacer – Bridge – Joiner – Bridge – Joiner – Bridge – Spacer – Spacer – Ramp
- etc
- etc
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
Please contact MGFSites.com via email on info@mgfsites.com or call us on 01246 472307 if you would like more information on this product.
