Description

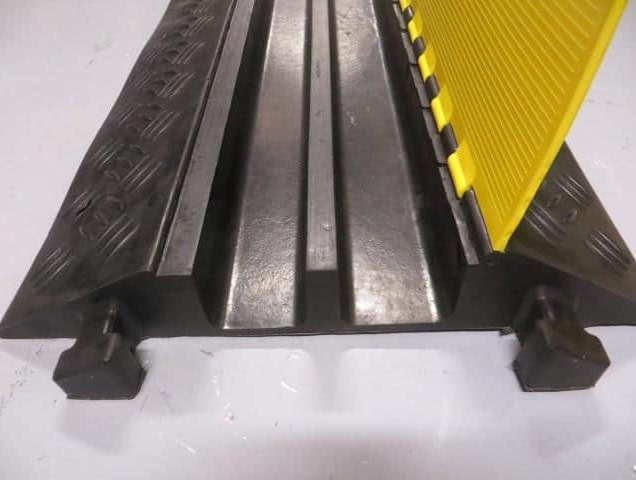

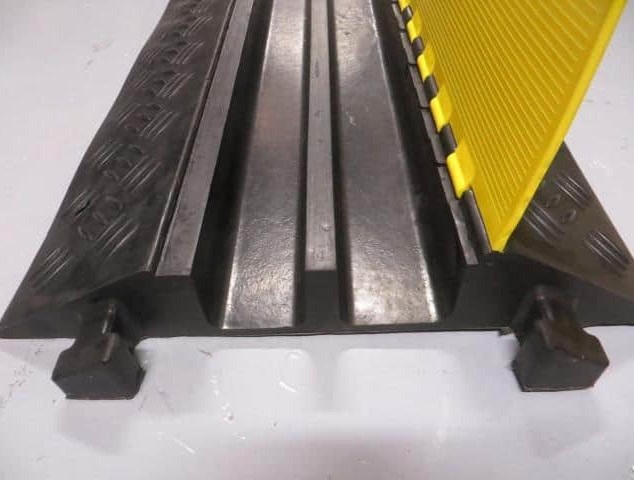

The MGF-0227 is a Moulded black rubber 2 channel hose ramp / cable protector with hinged solid yellow plastic(PE) lid. The ramps are deployed first and the cables placed inside once the ramps are in place. These ramps can accommodate up to 80mm diameter hard cables/pipes or 84mm soft hoses and are ideal for concert venues, exhibitions and outdoor events where large diameter cables are often found.
This product has been tested to withstand the maximum vehicle weight permitted on UK and EU roads.
Specification
Material: Rubber with PE hinged yellow lid
Dimensions: 900 x 615 x 100mm
Channels: 2 Channels – 84mm (bottom) – 92mm (top) wide x 75mm deep
Fixing: n/a
Usage: Pedestrian and vehicles
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060030
Compatible Products:
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
