Description

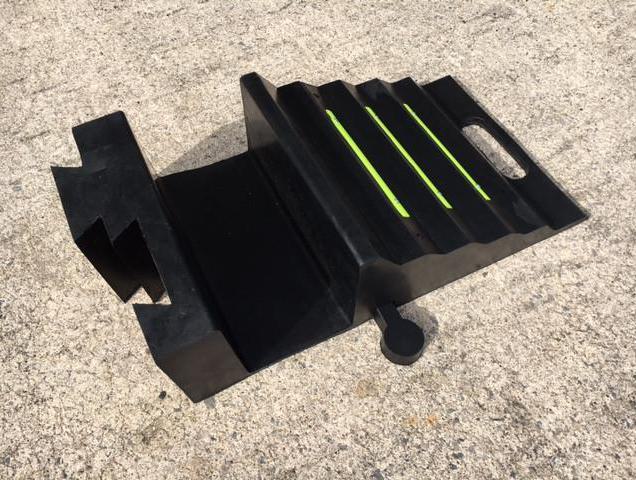

The MGF-0429 Hose and Cable Ramp is the ramp portion of a modular system that allows for many hoses and cables to be protected. The central section of this system is MGF-0430. The part has one open top channel. The channel is 125mm at the base and 135mm at the top. The depth of each channel is 125mm. Each part can be joined to another to make a ramp for an infinite number of cables. If required 2 pieces of MGF-0429 can be fitted together to make a ramp suitable for 2 x 125mm hose or cable, when packing these away it is possible to split the ramp and store face to face to take up less space than a standard hose ramp.
*Please note, this price is for ONE ramp section as shown in the main picture. The other pictures show example configurations when used in conjunction with other products in the range.
Specification
Material: Rubber/SBR
Dimensions: 550 x 300 x 135mm
Channels: 1 Channel – 125mm wide (base) – 135mm wide (top) x 125mm deep
Fixing: n/a
Usage: Vehicles
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060036
Compatible Products: MGF-0430
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
