Description

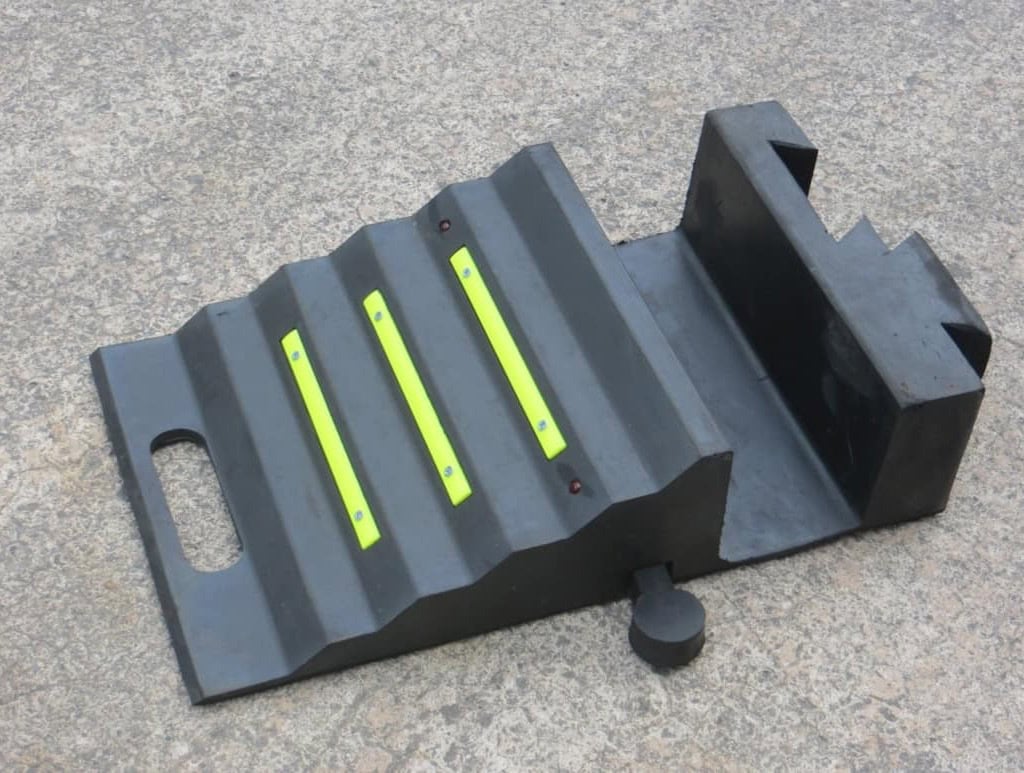

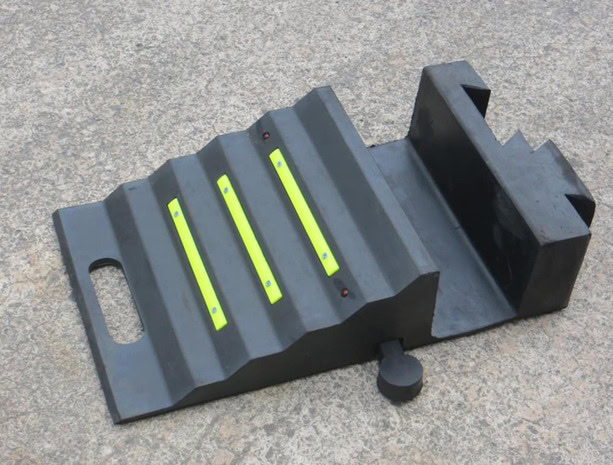

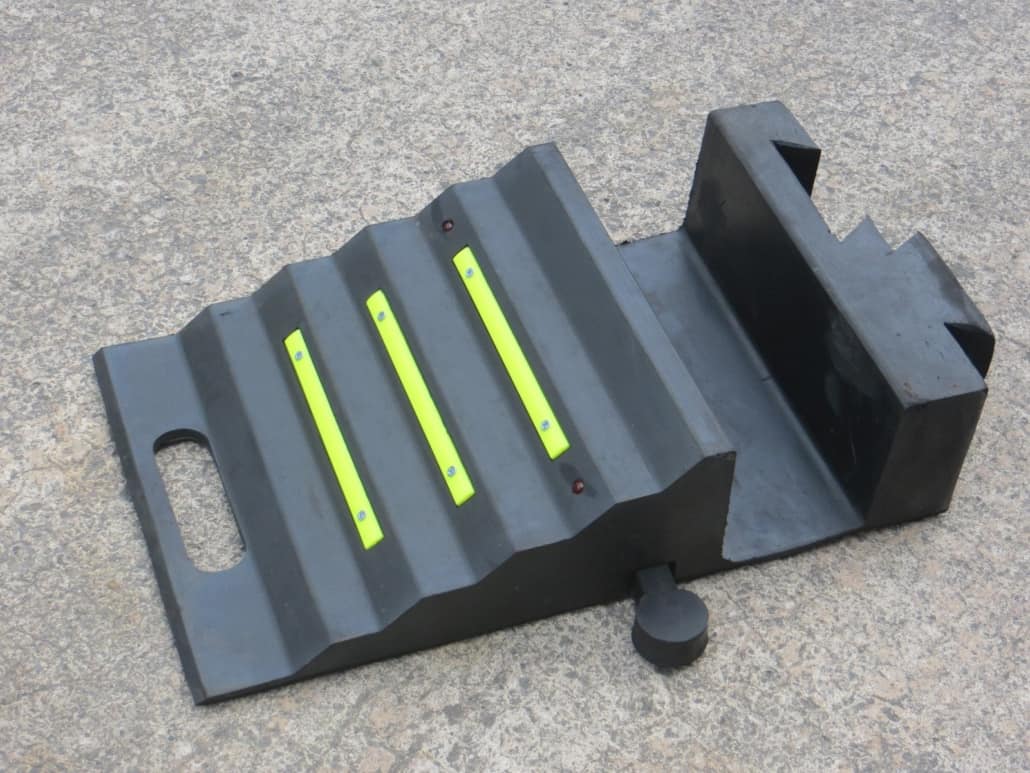

The MGF-0232 Hose and Cable Ramp is the ramp portion of a modular system that allows for many hoses and cables to be protected. The central section of this system is MGF-0231. The part has one open top channel. The channel is 108mm at the base opening up to 115mm at the top. The depth of each channel is 110mm. Each part can be joined to another to make a ramp for an infinite number of cables. If required 2 pieces of MGF-0232 can be fitted together to make a ramp suitable for 2 x 100mm hose or cable, when packing these away it is possible to split the ramp and store face to face to take up less space than a standard hose ramp.
*Please note, this price is for ONE ramp section as shown in the main picture. The other pictures show example configurations when used in conjunction with other products in the range.
Specification
Material: Rubber/SBR
Dimensions: 535 x 295 x 118mm
Channels: 1 Channel – 108mm wide (base) – 115mm wide (top) x 110mm deep
Fixing: n/a
Usage: Vehicles
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060012
Compatible Products: MGF-0231
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
Please contact MGFSites.com via email on info@mgfsites.com or call us on 01246 472307 if you would like more information on this product.
