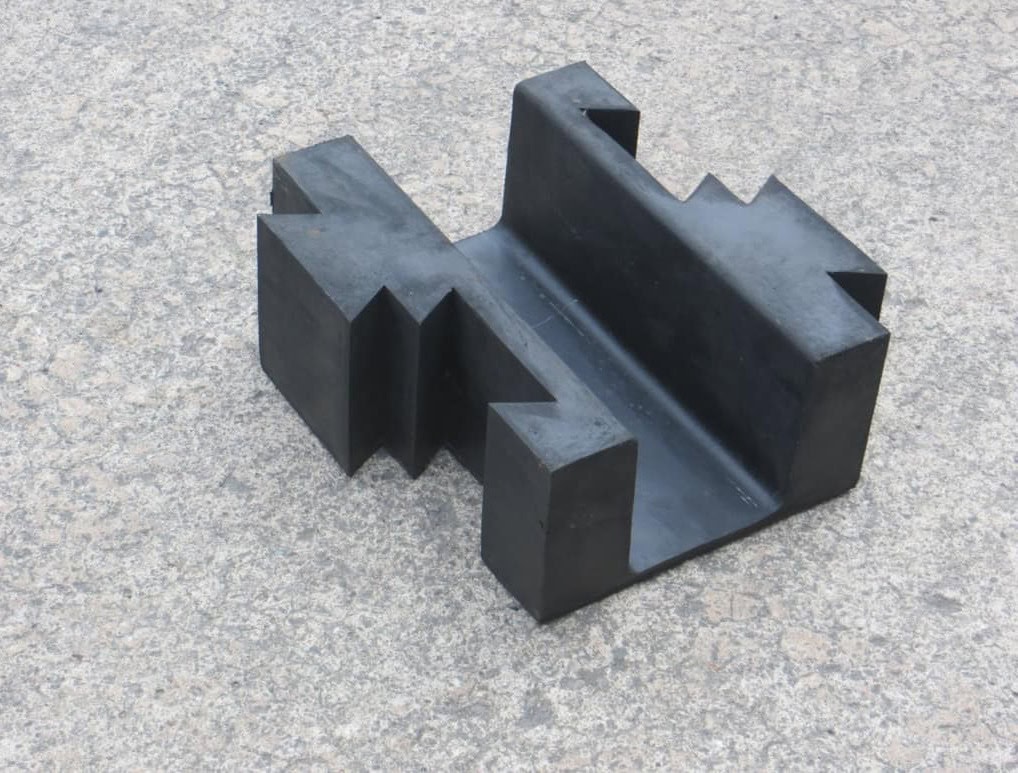

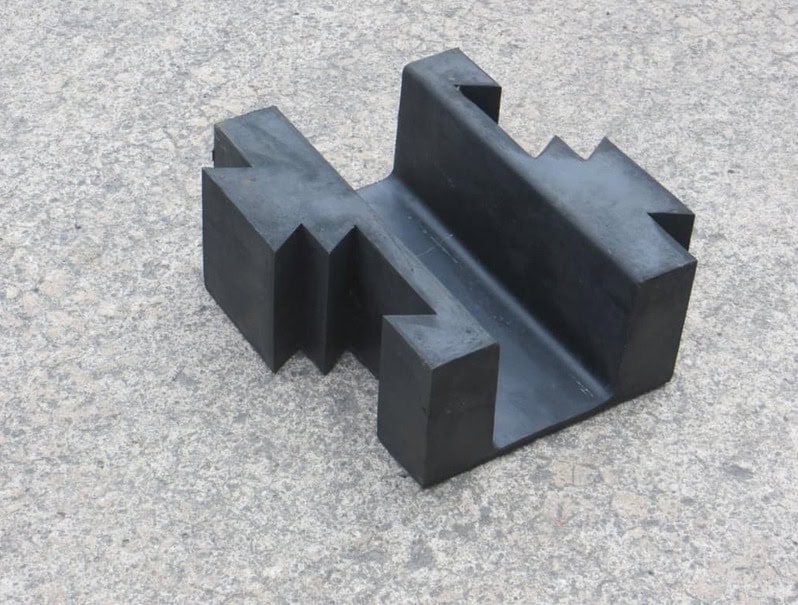

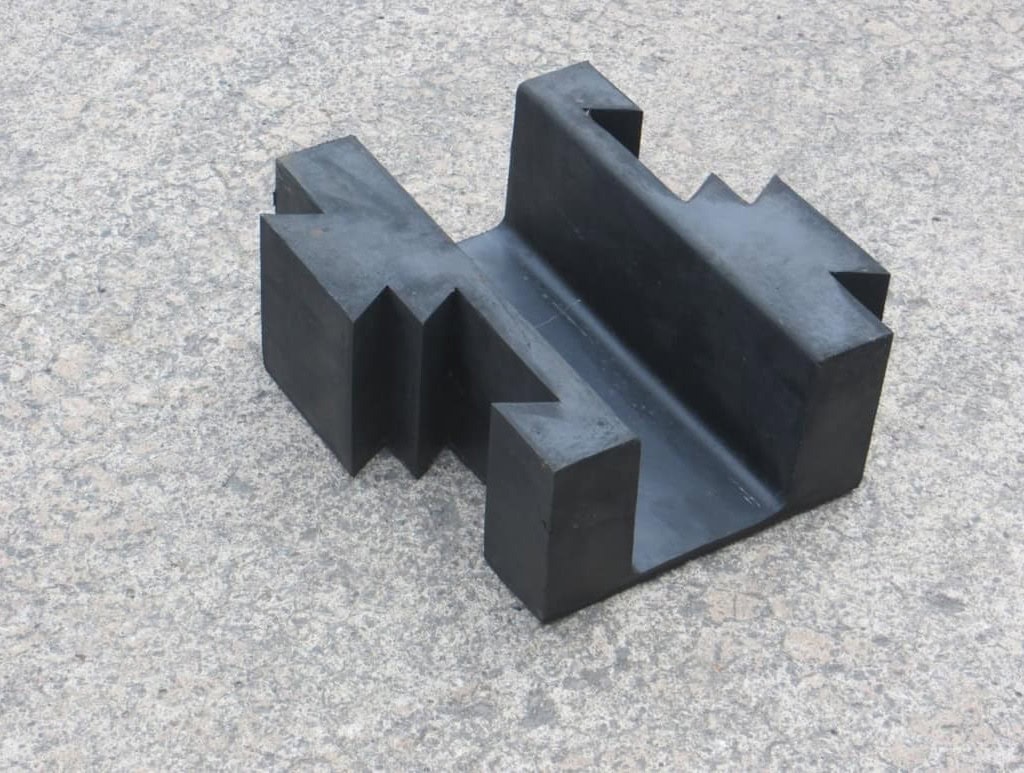

The MGF-0231 Hose and Cable Ramp is the central portion of a extendable system that allows for many hoses and cables to be protected. The ramp section of this system is MGF-0232. This part has one open top channel. The channel is 108mm at the base opening up to 115mm at the top. The depth of each channel is 110mm. Each part can be joined to another to make a ramp for an infinite number of cables, see MGF-0232.
Dimensions: 290 x 295 x 118mm
Channels: 1 Channel – 108mm wide (base) – 115mm wide (top) x 110mm deep
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060011
Compatible Products: MGF-0232
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
