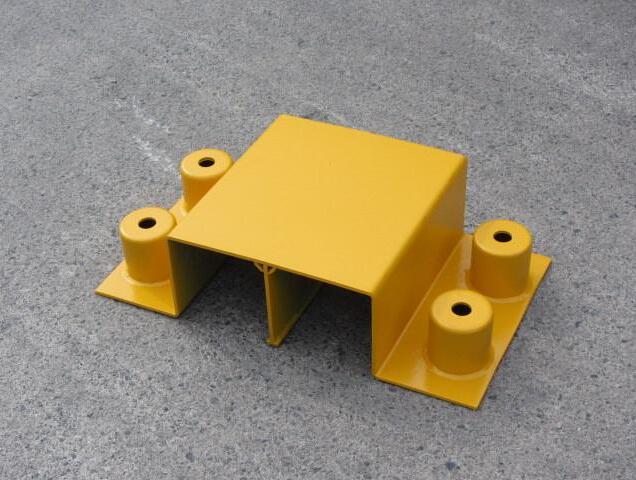

The MGF-0240 Hose and Cable Ramp is the central steel bridge for the modular ramp system designed to take larger diameter hose up to a maximum of 170mm diameter. This particular steel bridge can accommodate 2 x 170mm dia hoses/cables. Using the rubber elements of this system it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without “beaching”. The design allows for the front wheel to still be up in the rubber blocks when the rear wheel starts up the leading edge of the ramp.
Material: 7mm thick Galvanised Steel with Yellow Powdercoat (RAL1028)
Dimensions: 360 x 400 x 175mm
Channels: 2 Channels – 170 x 170mm
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060017
Compatible Products: MGF-0238, MGF-0392, MGF-0241, MGF-0237, MGF-0239
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks or any other vehicle with solid tyres/wheels.
2 – How would I avoid cars grounding on the bridge? – Due to the height of modular system, we would recommend the following basic configuration, this gives an overall length that would ensure that most cars would have all wheels off the ground at the same time, and therefore avoid ‘beaching’
- Ramp – Spacer – Spacer – Bridge – Spacer – Spacer – Ramp
3 – I need to run more than 2 Hoses, is this possible? – Yes. This can be achieved by incorporating the ‘Joiner’ section (MGF-0239). This piece joins two or more bridges together, see the following examples.
- (4 Hoses/Cables) – Ramp – Spacer – Spacer – Bridge – Joiner – Bridge – Spacer – Spacer – Ramp
- (6 Hoses/Cables) – Ramp – Spacer – Spacer – Bridge – Joiner – Bridge – Joiner – Bridge – Spacer – Spacer – Ramp
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
Please contact MGFSites.com via email on firstname.lastname@example.org or call us on 01246 472307 if you would like more information on this product.
