Description

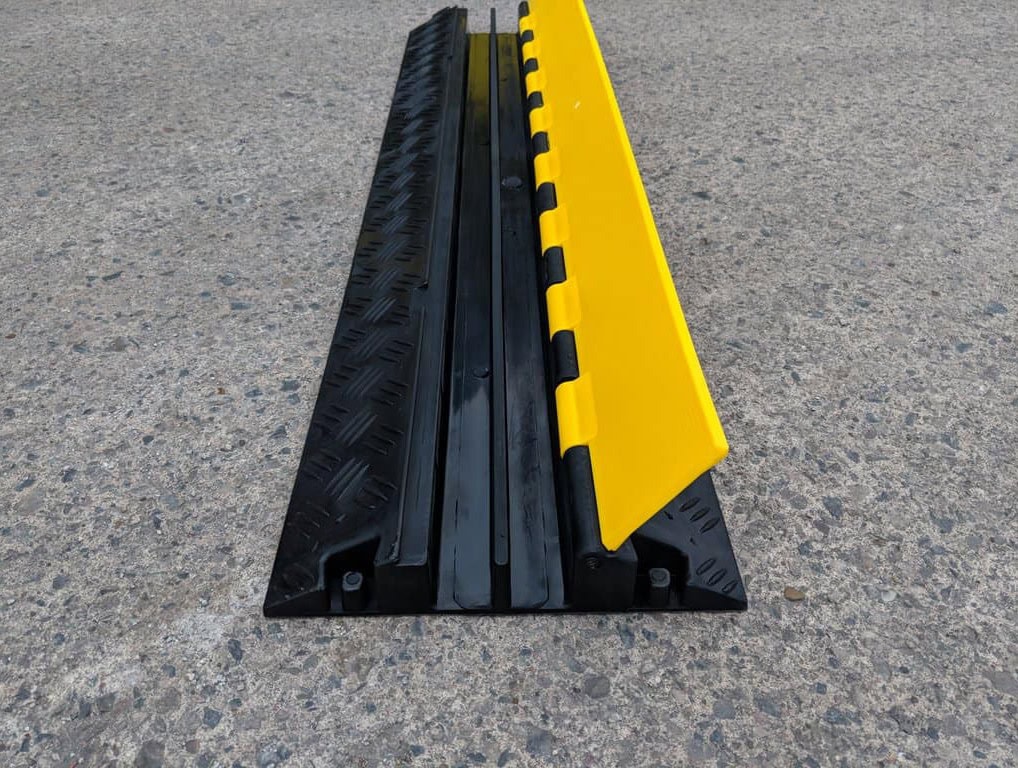

The MGF-0222 is a 2 channel Hose or Cable Ramp made from high quality PU protects two separate 32mm diameter cables/hoses. The bright yellow hinged lid (made from PVC) is highly visible and allows easy access. The ramp features integral male/female connectors which allow the ramps to be connected to each other to form long sections.
Specification
Material: Rubber with PVC hinged yellow lid
Dimensions: 1000 x 250 x 50mm
Channels: 2 Channels – 32mm(base) x 34mm(high)
Fixing: n/a
Usage: Pedestrian and light traffic
Max Load: 2 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060025
Compatible Products: n/a
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
Please contact MGFSites.com via email on info@mgfsites.com or call us on 01246 472307 if you would like more information on this product.
