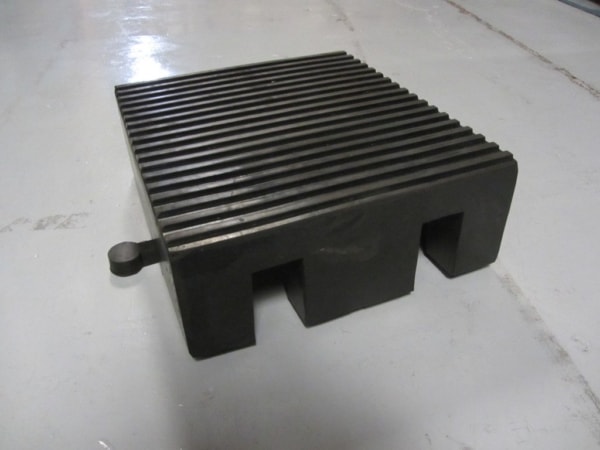

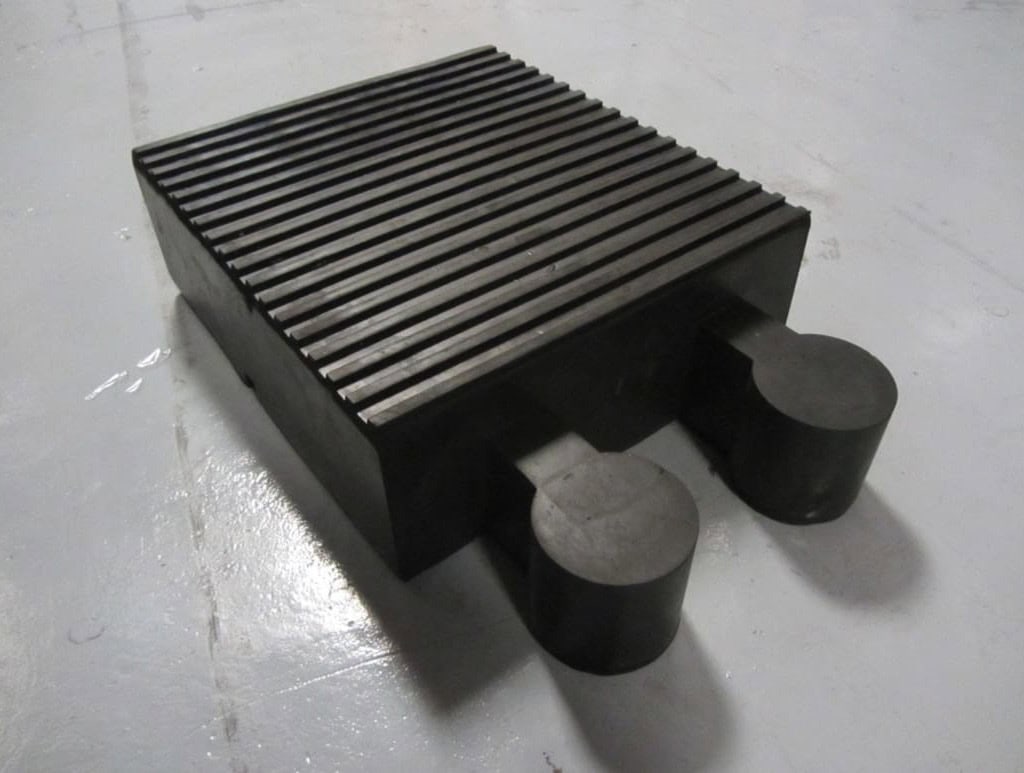

The MGF-0237 is the spacer section for our modular hose ramp system which designed to take larger diameter hose from 140mm up to a maximum of 180mm in diameter depending upon which steel bridge section is used. This particular part keeps the vehicle up 160mm above the ground.
Used with other rubber elements of this system it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without “beaching”.
The design allows for the front wheel to still be up on the rubber blocks when the rear wheel starts up the leading edge of the ramp.
Dimensions: 450 x 400 x 160mm
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060010
Compatible Products: MGF-0238, MGF-0392, MGF-0240, MGF-0241, MGF-0239,
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
2 – How would I avoid cars grounding on the bridge? – Due to the height of modular system, we would recommend the following basic configuration, this gives an overall length that would ensure that most cars would have all wheels off the ground at the same time, and therefore avoid ‘beaching’
- Ramp – Spacer – Spacer – Bridge – Spacer – Spacer – Ramp
3 – I need to run more than 2 Hoses, is this possible? – Yes. This can be achieved by incorporating the ‘Joiner’ section (MGF-0239). This piece joins two or more bridges together, see the following examples.
- (4 Hoses/Cables) – Ramp – Spacer – Spacer – Bridge – Joiner – Bridge – Spacer – Spacer – Ramp
- (6 Hoses/Cables) – Ramp – Spacer – Spacer – Bridge – Joiner – Bridge – Joiner – Bridge – Spacer – Spacer – Ramp
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
