Description

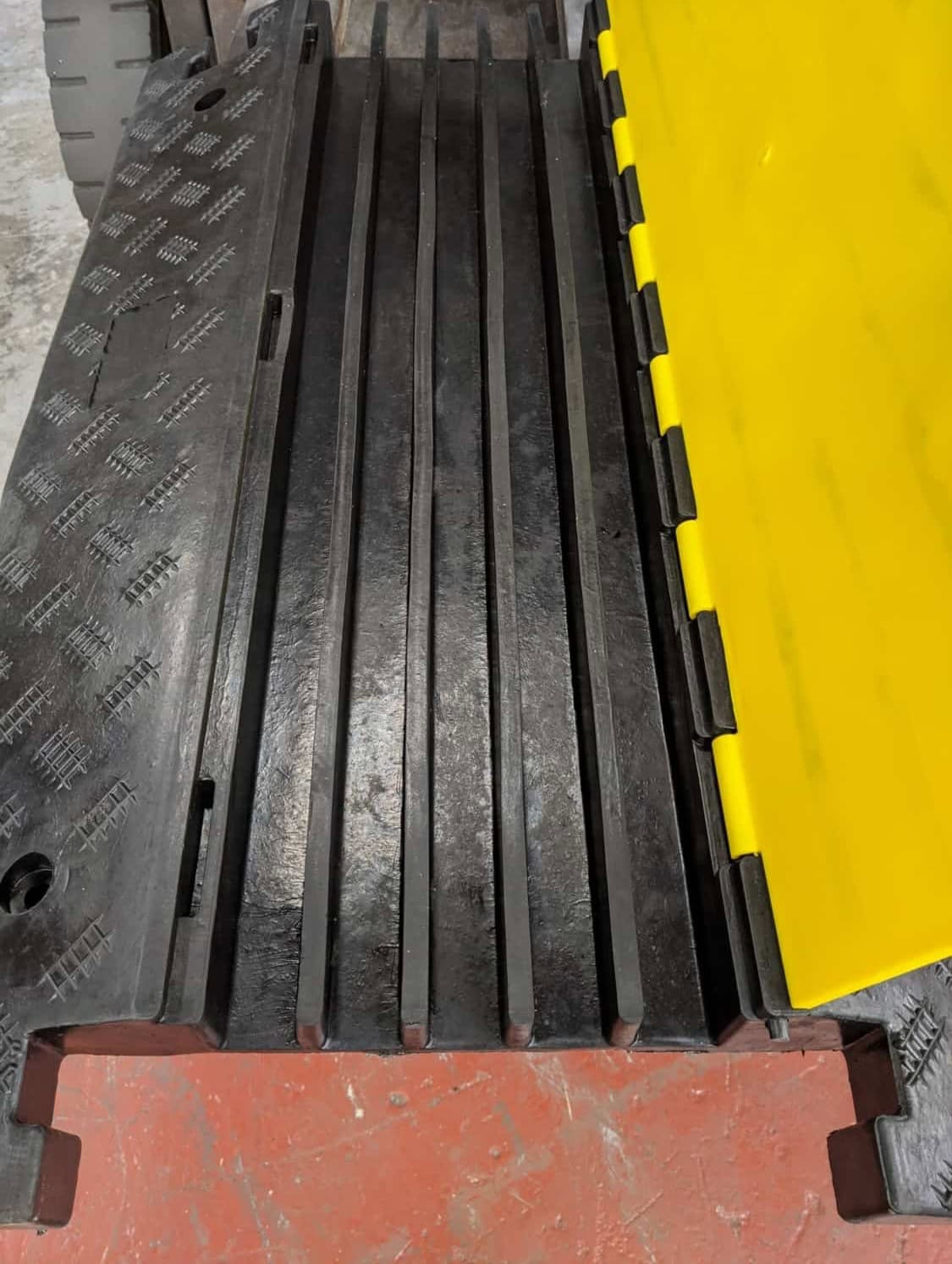

The MGF-0223 Hose and cable ramp is a 5 channel lidded ramp for pedestrians and vehicles. Each 960mm unit links together to make a continuous run. Cables/hoses can be added or removed once the ramps have been deployed. The lids are made from high visibility yellow PE.
Specification
Material: Rubber with PE hinged yellow lid
Dimensions: 960 x 590 x 80mm
Channels: 5 Channels – 35mm(base) x 50mm(high)
Fixing: n/a
Usage: Pedestrian and vehicles
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060001
Compatible Products: n/a
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
