Description

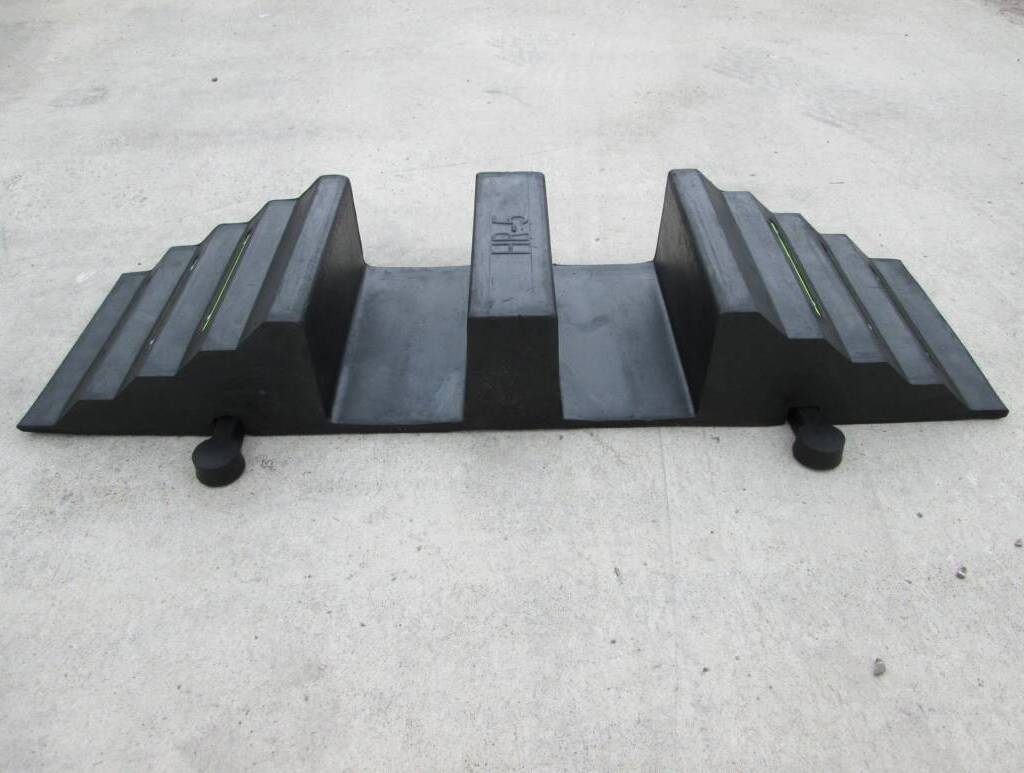

The MGF-0235 Hose and Cable Ramp is a moulded rubber hose ramp designed to protect 2 x 125mm diameter hoses. The part has two open top channels. Each channel is 135mm at the base opening up to 140mm at the top. The depth of each channel is 120mm. Each face of the ramp has three yellow visibility strips embedded into slots. The ramp is supplied with 2 connecting connectors fitted. Spares are available if required.
Max Load: 12 Tonnes per Vehicle Axle
Dimensions: 980 x 290 x 135 mm
This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note – These ramps are temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
