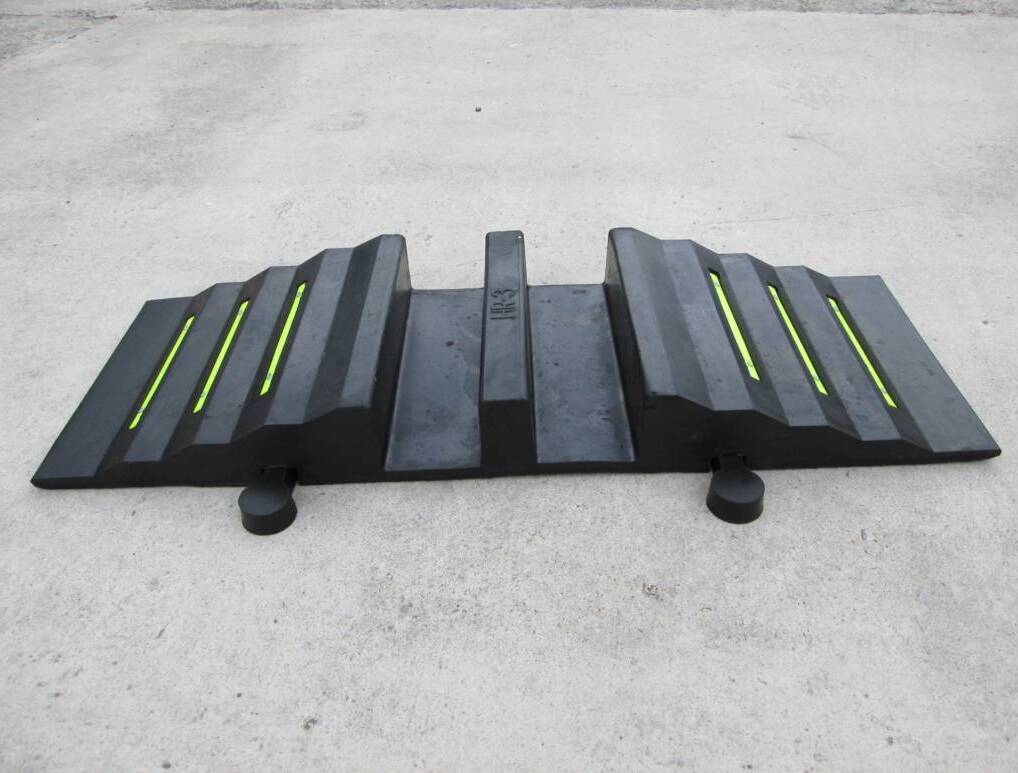

The MGF-0226 Hose and Cable Ramp is the original moulded rubber hose ramp designed for Fire Brigade’s 2.5″ lay-flat hose. An inexpensive product that has been around for many decades. The part has two open top channels. Each channel is 85mm at the base opening up to 92mm at the top. The depth of each channel is 70mm. Each face of the ramp has three yellow visibility strips embedded into slots. The ramp is supplied with 2 connecting connectors fitted. Spares are available if required (see part – MGF-0221).
Dimensions: 850 x 300 x 84mm
Channels: 2 Channels – 85mm wide (bottom) – 92mm wide (top) x 70mm deep
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060005
Compatible Products: MGF-0221
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
Please contact MGFSites.com via email on email@example.com or call us on 01246 472307 if you would like more information on this product.
