Description

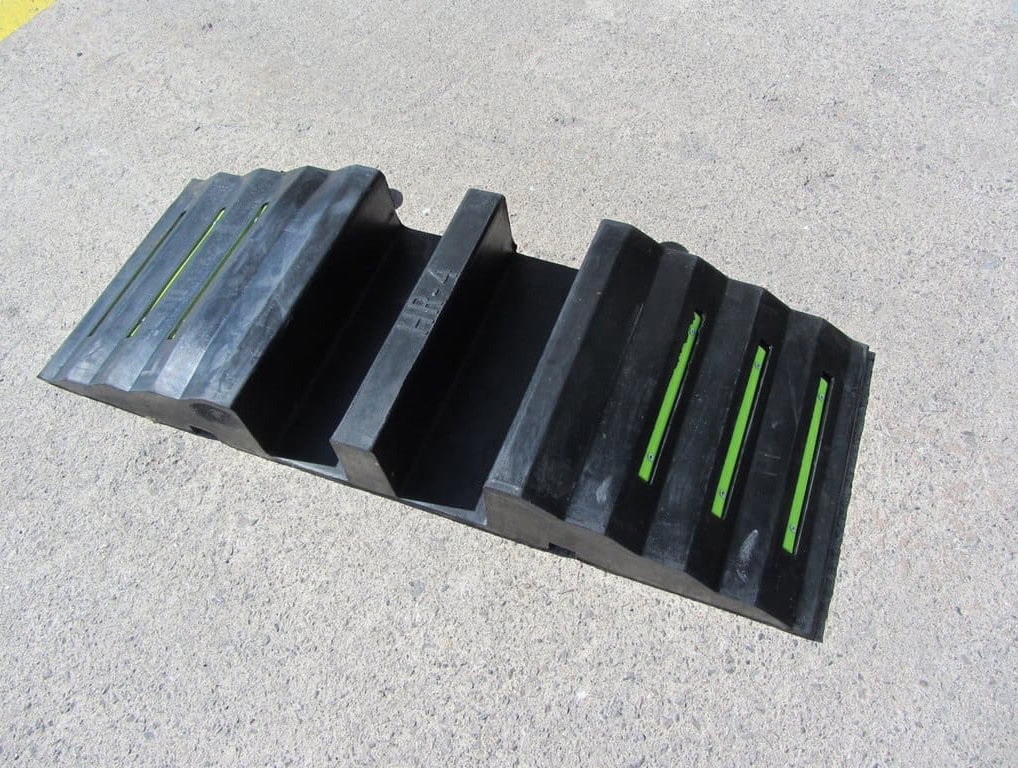

The MGF-0229 Hose and Cable Ramp is a moulded rubber hose ramp designed to protect 2 x 100mm diameter hoses. The part has two open top channels. Each channel is 95mm at the base opening up to 102mm at the top. The depth of each channel is 94mm. Each face of the ramp has three yellow visibility strips embedded into slots. The ramp is supplied with 2 connecting connectors fitted. Spares are available if required – (MGF-0221)
Specification
Material: Rubber/SBR
Dimensions: 820 x 310 x 102mm
Channels: 2 Channels – 95mm wide (bottom) – 102mm wide (top) x 94mm deep
Fixing: n/a
Usage: Vehicles
Max Load: 12 Tonnes per vehicle axle
Min Order Qty: n/a
Legacy p/n: 10060006
Compatible Products: MGF-0221
Frequently Asked Questions:
1 – Limitations? – This cable protector should NOT be used with fork lift trucks, tracked vehicles or any other vehicle with solid tyres/wheels.
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
Please contact MGFSites.com via email on info@mgfsites.com or call us on 01246 472307 if you would like more information on this product.
