Description

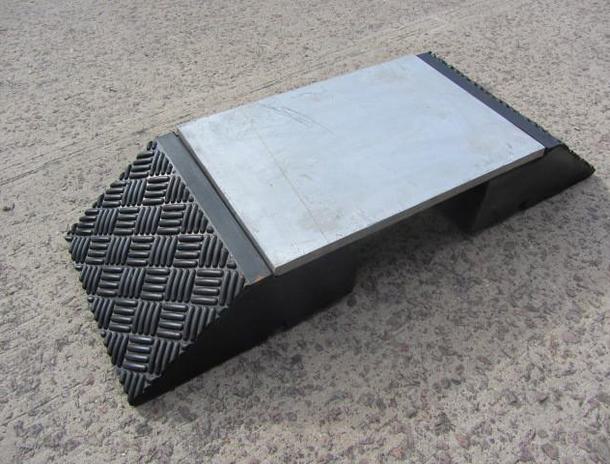

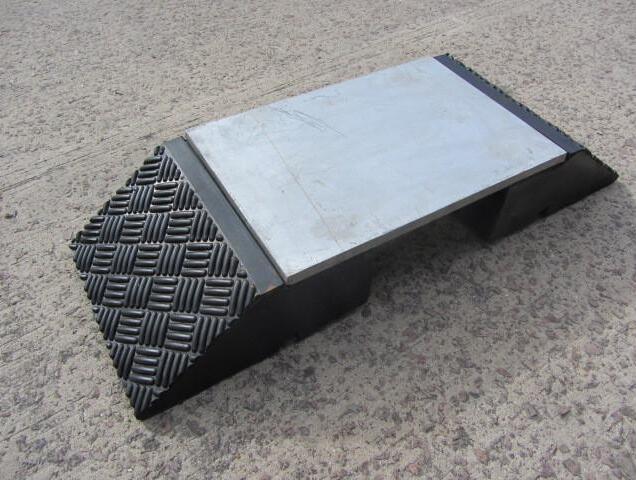

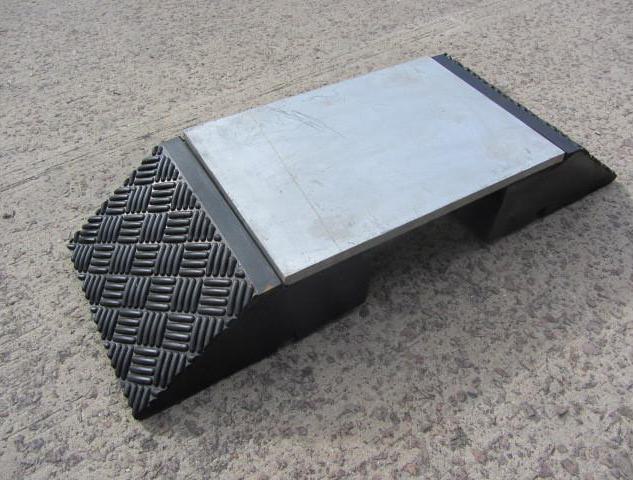

The MGF0233 Hose and Cable Ramp is a steel topped hose ramp with a single channel. It is ideal for protecting hoses and cables up to 105mm in diameter.
It has been independently tested and can withstand 80 Tonne vehicles crossing over.
Load test data:

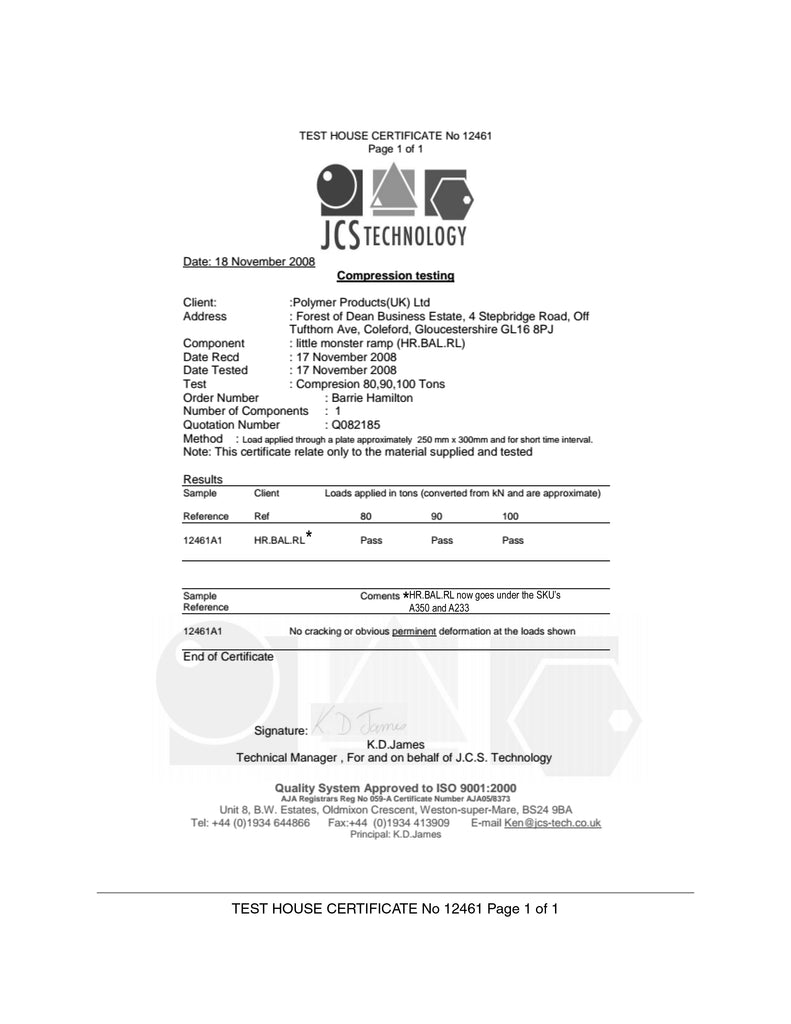

Independently tested by J.C.S. Technology
TEST HOUSE CERTIFICATE No 12461
Quality System Approved to ISO 9001:2000
Method: Load applied through a plate approximately 250 mm x 300mm and for a short time interval.
Sample: Load applied in tons (converted from kN and are approximate)
Load applied 80 tonnes
Result A233(HR.BAL.RL) Pass
A larger version of this part is MGF-0350
Max Vehicle Weight: 60 Tonnes

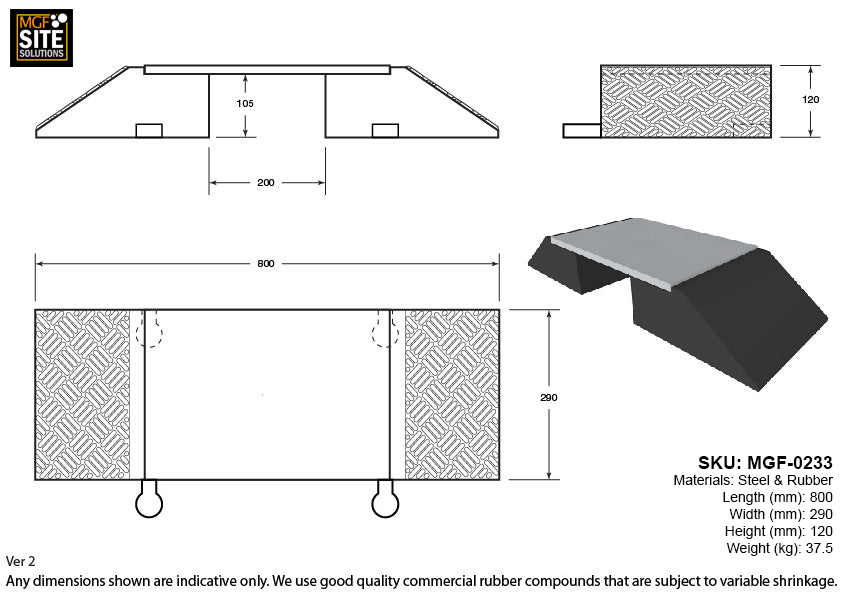

Channel: 105 x 200mm
Dimensions: 810 x 290 x 120 mm
Not suitable for cars.
Note – These ramps are temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp.
