Description

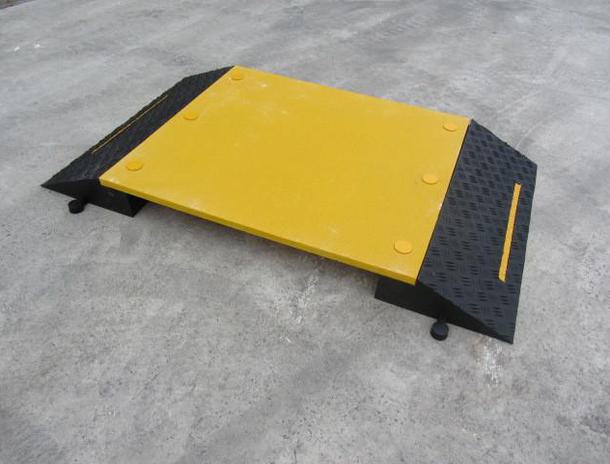

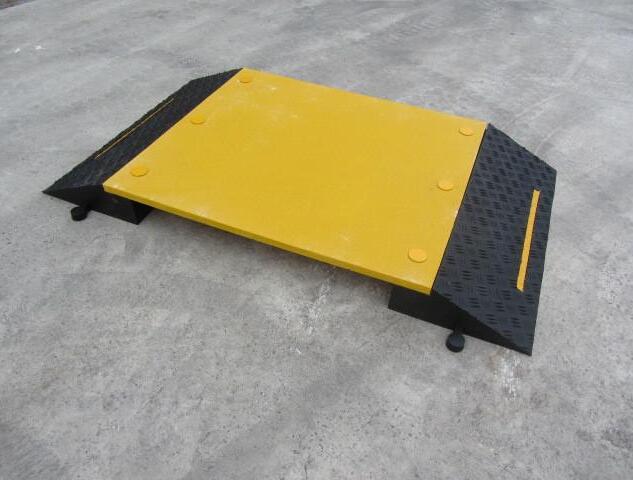

The MGF-0298 Hose and Cable Ramp is a pedestrian ramp designed to cover multiple hoses. It has a bridge distance of 800mm and a gap height of 100mm. It can accommodate up to eight 100mm hoses and is delivered ready assembled. The solid GRP top prevents problems with pedestrians with high heels. It requires two people to lift and deploy. See also MGF-0417.
Specification
Material: Rubber/SBR ramps with Solid Topped GRP Grating
Dimensions: 1560 x 880 x 125mm
Channels: 1 Channel – 800mm wide x 100mm high
Fixing: n/a
Usage: Pedestrian Only
Max Load: 250kg
Min Order Qty: n/a
Actual Weight: 46kg (This item is shipped on a pallet due to its size, weight for shipping purpose is 71kg)
Legacy p/n: 10060029
Compatible Products: MGF-0329
Frequently Asked Questions:
1 – Limitations? – Pedestrian Only, max load 250kg
Note: These ramps are for temporary deployment and not for permanent fitting. The ramp should be deployed on firm ground, ideally concrete or tarmac. Avoid bridging over voids as this could cause the ramp to fail.
Please contact MGFSites.com via email on info@mgfsites.com or call us on 01246 472307 if you would like more information on this product.
